تفاصيل المنتج:
شروط الدفع والشحن:
|
| Power source: | AC | اسم العلامة التجارية: | Hengda |
|---|---|---|---|
| Model: | WH-1.5/30 | Compression stage: | 2 |
| Weight: | 450 Kg | Diemnsion: | 1470*780*885 mm |
| تسليط الضوء: | high pressure air compressor,quiet air compressor,quiet air compressor |
||

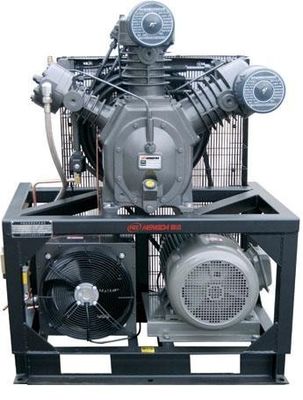

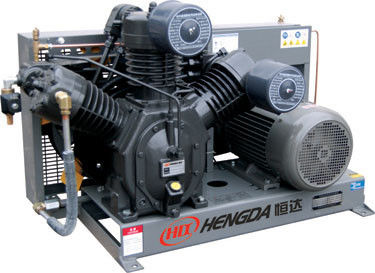

Energy Efficient 30 Bar High Pressure Piston Air Compressor Pump Low - noise 1.5 M3/min
Quick Detail:
|
Name |
Air compressor |
Brand Name |
Hengda |
|
Capacity |
1.5 M3/Min |
Pressure |
30 Bar |
|
Function |
compressed air |
Usage |
Supply compressed air for PET bottle blowing |
Applications:
1. Supply high pressure compressed air
2. High pressure compressed air for bottle blow molding.
air compressor pump
1. Air capacity: 1.5M3/min
2. working pressure: 30bar
3. Power:18.5kw
4. Certificate: ISO/CE
1. Main data
|
Model |
Air capacity (M3/min) |
Working pressure (Bar) |
Power(Kw) |
Speed(r.p.m) |
Weight(Kg) |
|
VH-0.7/30 |
0.7 |
30BAR |
7.5 |
680 |
310 |
|
WH-1.0/30 |
1.0 |
11 |
600 |
430 |
|
|
WH-1.2/30 |
1.2 |
15 |
760 |
450 |
|
|
WH-1.5/30 |
1.5 |
18.5 |
790 |
520 |
|
|
WH-2.0/30 |
2.0 |
22 |
670 |
610 |
|
|
WH-2.35/30 |
2.35 |
25 |
760 |
620 |
|
|
2-WH-3.0/30 |
3.0 |
2*18.5 |
790 |
1150 |
|
|
3-WH-3.6/30 |
3.6 |
3*15 |
700 |
1580 |
|
|
VH-0.17/35 |
0.17 |
35BAR |
2.2 |
660 |
110 |
|
VH-0.65/35 |
0.65 |
9.0 |
605 |
420 |
|
|
WH-1.1/35 |
1.1 |
15 |
900 |
475 |
|
|
WH-2.0/35 |
2.0 |
22 |
670 |
615 |
|
|
WH-2.2/35 |
2.2 |
25 |
735 |
600 |
|
|
VH-0.3/40 |
0.3 |
40BAR |
5.5 |
500 |
290 |
|
WH-1.0/40 |
1.0 |
11 |
790 |
470 |
|
|
49SH-2.6/40 |
2.6 |
25 |
625 |
900 |
|
|
49SH-3.0/40 |
3.0 |
30 |
695 |
920 |
|
|
2-49SH-6.0/40 |
6.0 |
2*30 |
695 |
2100 |
|
|
4-WH-4.0/40 |
4.0 |
4*11 |
790 |
2400 |
|
|
6-WH-6.0/40 |
6.0 |
6*11 |
790 |
3600 |
2. Inspection method:
CAGI
3. Inspection standard:
- AISI
- AMS
- ANSI
- ASME
- ASTM
- AGMA
- AGMA
- NEMA
- VDI
- CAGI-NPEUROP
- MS
4. Technical characteristics:
4.1 Automatic pressure unloading system, ensure machine starting without loading.
4.2 With exhaust check valve on outlet.
4.3 Removable type inlet silencing filter, 10 micron precision.
4.4 Normal inertia flywheel, 2 root V belt drive.
4.5 Splashing lubrication to all moving Parts.
4.6 Light alloy pistons, with PTFE
4.7 Cast iron cylinder head, independent valve seat.
4.8 Automatic hoop valve piston rings, big flow, more action, high efficiency.
4.9 World famous brand rolling bearing, ensure the stable operation unit.
4.10 Enough space between the cylinder and the crankcase design, avoid friction between connecting rod, moving parts and crankcase.
4.11 With Safety Valve Between after-cooling.
