| Characteristic: | small size and light weight | Feature: | Portable pump |
|---|---|---|---|
| Rolling speed: | 40-60L/min | Advantage: | Flameproof Motor |
| Service: | ODM,OEM | Certificate: | ISO & CE |
| تسليط الضوء: | electric oil barrel pump,chemical drum pump,chemical drum pump |
||
PP Material Impeller Electric Oil Drum Pump Optional Aluminum Alloy or Stainless Steel Pump Tube
Quick detail :
YING-LIFT Electric Oil Drum Pump / Electric Barrel Pump features Hi-speed Flame Proof Electric Motor, small size and Light weight. It is specially designed for 200L or 220L barrels, transferring acid, alkali, diesel oil, gasoline, engine oil, vegetable oil, milk, hydraulic oil, alcohol, acid and some other lubricities and corrosive liquid transfer.
Description:
1. with flameproof motor;
2. Portable pump, suitable for 200L or 220L standard barrels;
3. Optional aluminum alloy or stainless steel pump tube;
4. Impeller made of PP material;
5. Designed for diesel oil, gasoline, engine oil, vegetable oil, milk, hydraulic oil, alcohol, acid and some other corrosive liquid transfer;
6. Small size and light weight;
7. Typical flow rate 40-60 L/min at 2850 rpm;
8. Suction depth up to 1.0 meters;
9. Convenient operation maintenance;
10. 220V 50HZ 880W drum pump;
Technical Data:
|
Model |
Flow Rate |
Head |
Power |
Rotating Speed |
Pump Material |
Impeller/Outlet Material |
ID/OD |
Net Weight |
|
L/min |
m |
kw |
r/min |
/ |
/ |
mm |
kg |
|
|

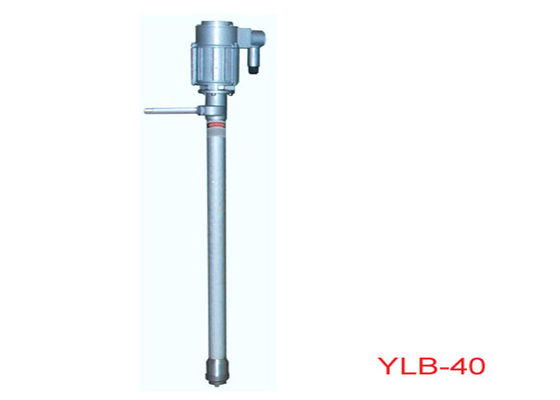

YLB-40 |
40 |
3 |
0.12 |
2850 |
AL-alloy |
PP |
55/20 |
7 |
|

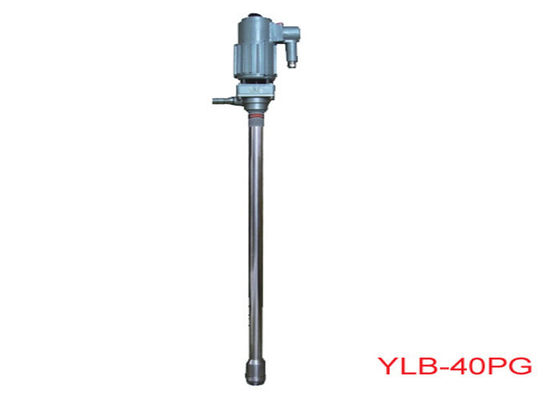

YLB -40PG |
40~60 |
6 |
0.18 |
2850 |
SS304 |
PP |
55/20 |
9.5 |
|

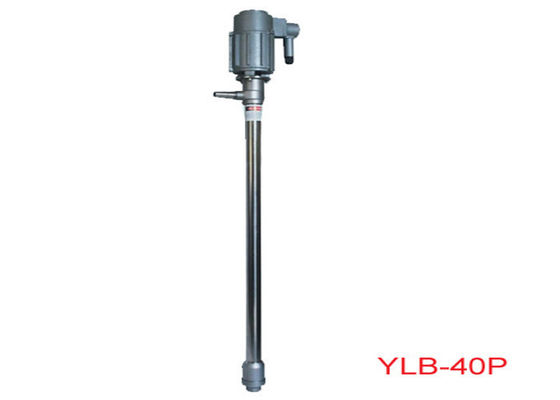

YLB-40P |
40 |
3 |
0.12 |
2850 |
SS304 |
PP |
50/20 |
6 |
Applications:
As an ideal pump for oil stock, oil barrel, our Barrel Pump (Flameproof Motor) is widely used in chemical industry, petrochemical industry, fine chemical engineering, dyeing chemical industry, environmental protection, water treatment, pharmacy, food industry for diesel oil, gasoline, engine oil, vegetable oil, milk, hydraulic oil, alcohol, acid and some other corrosive liquid transfer.
Competitive Advantage :
1. Available pump tube Option: S.S. 304 and Polypropylene ( P.P );
2. Specially designed with small size and light weight;
3. Rotating speed at 2850rpm;
4. with 3-6 meters head;
5. Suction depth up to 1.0 meters;
6. Convenient operation maintenance;
7. Mass in stock and fast delivery;
8. ODM service available;
