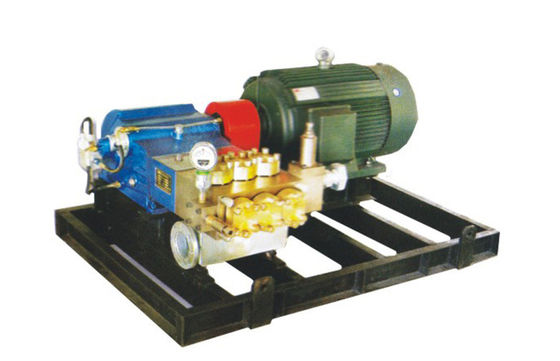

Oil field High Pressure embolic Hydraulic Piston Pump 3D3-SZ
Quick Detail:
1, Model:3D3-SZ
2, Power:110-200KW
3, Plunger Dia.:45-70mm
4, Pump Speed:366
5, Plunger stroke:120
6, RPM:1480
Description:
The high-pressure pump 3D3-S(K20000)This is the high pressure embolic pump of large flow imported from KAMAT OF gERMANY. The most power is 200KW.lt is applied for the elimination of squama in metallurgy, the seeond time oil extraction, the affusion on the third time oil extraction,injection and other
not only for transmission of clear water and emulsification liquid,but also industrial fields needing the large flow. Lt is for the transmission of the chemical liquid.
Applications:
Oil field,coal excavation,excavation equipments surface cleaning
Specification:
| RPM min-1 | 1480 | Plunger stroke mm | 120 | |||||||||
| gear reduction ratio | i=4.04 | gear reduction ratio | i=4.619 | |||||||||
| Pump Speed min-1 |
366 | Pump Speed min-1 | 320 | |||||||||
| Power KW | 110 | 132 | 160 | 200 | 110 | 132 | 160 | 200 | Power KW | |||
| Rated capacity | The rated discharge pressure MPa | The rated discharge pressure MPa | Rated capacity | |||||||||
| m3/h | L/min | L/min | m3/h | |||||||||
| 11.7 | 195 | 28 | 33 | 40 | 45 | 31 | 38 | 46 | 57 | 173 | 10.38 | |
| 14.4 | 240 | 22 | 27 | 33 | 36 | 25 | 31 | 37 | 46 | 213 | 12.78 | |
| 17.7 | 295 | 19 | 22 | 27 | 30 | 21 | 25 | 30 | 38 | 258 | 15.48 | |
| 21 | 350 | 16 | 19 | 23 | 25 | 18 | 21 | 26 | 32 | 307 | 18.42 | |
| 24.9 | 415 | 13 | 16 | 19 | 21 | 15 | 18 | 22 | 27 | 361 | 21.66 | |
| 28.8 | 480 | 10 | 13 | 17 | 19 | 13 | 15 | 19 | 24 | 418 | 25.08 | |
Competitive advantages:
Competitive price with top quality,professional export service,provide all products as customer’s requirement,respond within shortest time
