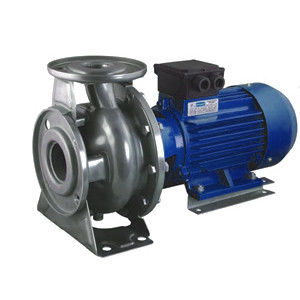

Stainless Steel Centrifugal Electric Water Pumps CPS Low Noise
CPS series stainless steel stamping pump is a Single-stage,single,sution centrifugal pump in Conformity with ISO2858-77 and GB5662-85. Its main componets are made with advanced Technology such as punched drawing and Expansion,welding,which results in the removal Of defects of casting,as well as in high precision,Smooth surface,high efficiency,low noise,little Vibration and light pump body.It’s a revolution in The industry of pumps. Application,it's widely applied in petrochemicals,Foodstuffs,drinkes,pharmaceticals,electric Power,textile,environmental protection,and Water supply for high buildings
PUMP
Pump Body: Stainless Steel
Impeller: Stainless Steel
Mechanical Seal: Carbon / Ceramic / Stainless Steel
MOTOR
Single Phase
Heavy Duty Continuous Work
Motor Housing: Aluminum
Shaft: Stainless Steel
Insulation: Class B / Class F
Protection: IP44 / IP54
Cooling: External Ventilation
OPERATING CONDITIONS
Liquid temperature up to 60℃
Ambient temperature up to 40℃
Total suction lift up to 9m
Continuous duty

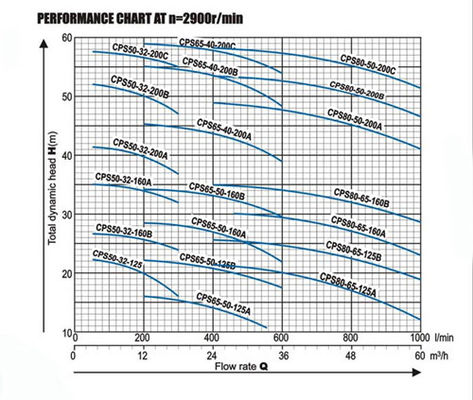

Specifications :
