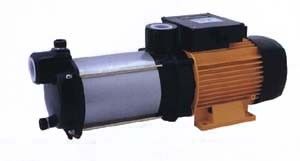

AISI304 SS Multistage Centrifugal Pump , Single Phase Centrifugal Pump
Material:
1, pump external casing:AISI304ss
1, Delivery casing: Cast iron G20 UNI5007
2, Suction casing: Cast iron G20 UNI5007
3, Stage casing: AISI304 SS
4, Diffuser: Plastic.ppo
5, Impeller : AISI304 SS
6, Motor external casing:Cast aluminum
7, Mechanical seal:Ceramic alumina.carbon,NBR
8, Shaft:AISI304ss-C1045
9, Bearing : NSK
Identification Code
eg: JPS25-3(S)
JPS: Pump Name
25: code
3: Impeller’s Number
S: single phase
Applications :
For water supply from wells or reservoirs.
For domestic use, for civil and industrial applications.
for garden use and irrigation.
Operating conditions :
Maximum fluid temperature up to +40 C
Maximum sand content:0.3%
Motor :
Rewind able motor
Three-phase: 380V-415V/50Hz
Single-phase: 220V-240V/50Hz
Special features available
Other voltages.
Frequency 60Hz.
Other mechanical seal.
Equip with Auto-control box as requirement.
Warranty:2 year
(according to our general sales conditions).
